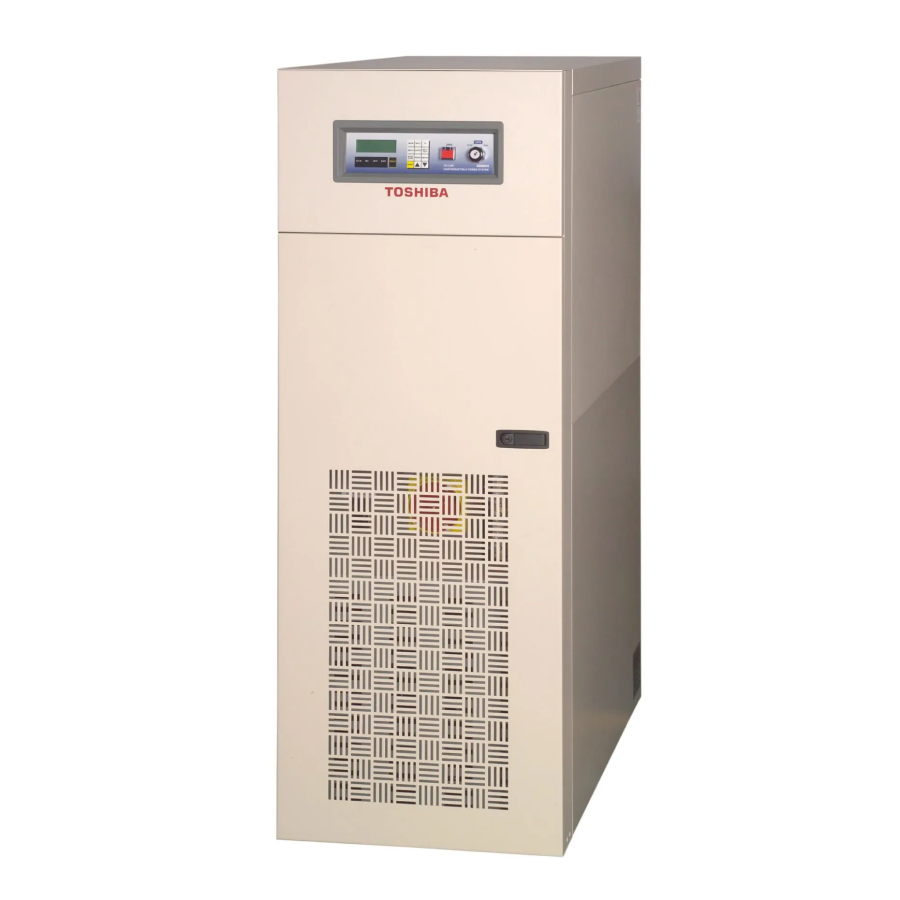

Product Description
Key Features & Benefits
-
All-IGBT Design: Utilizes high-frequency switching for the rectifier, DC converter, and inverter, resulting in high efficiency and superior output power quality.
-
Extended Battery Life: Its massive input voltage window (+20% to -30%) allow the UPS to stay in online mode without reverting to battery during significant brownouts or surges.
-
Zero Clearance Installation: Engineered with 100% front-access for installation, operation, and service, allowing the cabinet to be placed directly against walls or other equipment.
-
Internal Maintenance Bypass (CT Models): Comes standard with a “make-before-break” internal bypass, allowing the system to be serviced while the load remains powered.
-
Generator Friendly: High input power factor (>0.98) and low input THDi mean the unit won’t “pollute” the electrical system or cause issues with sensitive generator controllers.
Technical Specifications
| Feature | Specification |
| Power Rating | 15 kVA / 12 kW (0.8 Power Factor) |
| Phase | 3-Phase (Input & Output) |
| Topology | True Online, Double-Conversion |
| Input Voltage | 208/120V or 480V (Model Dependent) |
| Output Voltage | Matches Input (e.g., 208/120V 3Ph 4W+G) |
| Dimensions (WxHxD) | 20.0″ x 59.8″ x 36.3″ (508 x 1519 x 922 mm) |
| Weight | 900 lbs (CT model with internal batteries) |
| Audible Noise | < 60 dBA @ 1 meter |
