Product Description
Key Features & Benefits
-
Silicon Carbide (SiC) Technology: Employs cutting-edge SiC power modules that achieve up to 97% efficiency in true online double-conversion mode, reducing cooling costs and total energy waste.
-
Smart Modular Architecture (SMA): All modules (power, bypass, and intelligence) are hot-swappable and independent. A failure in one module does not impact the others, allowing for N+1 redundancy and maintenance without dropping the load.
-
Pay-As-You-Grow Scalability: The combo cabinet features three slots for power modules (20kW or 34kW units). You can start with 34kW and add a second 34kW module to reach 68kW as your data center expands.
-

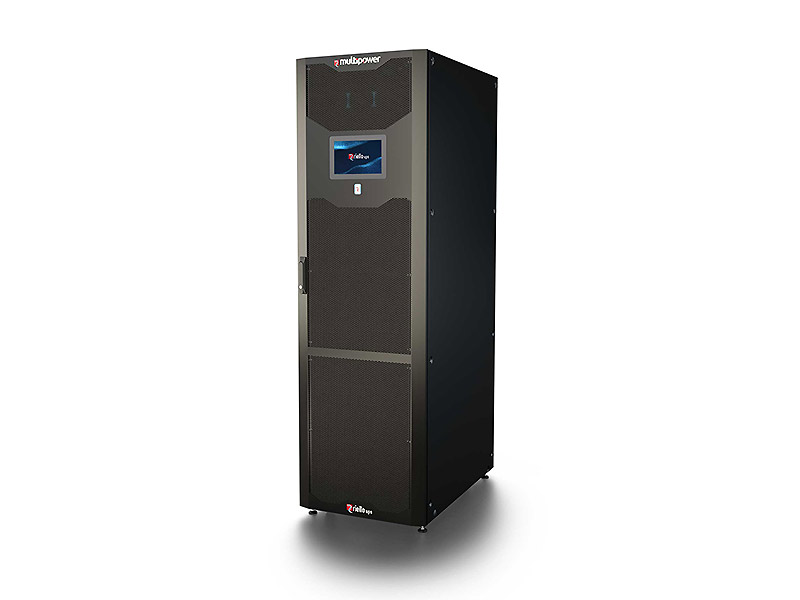

Ultra-Compact Footprint: The Combo Cabinet (CBC) integrates both power modules and 6 shelves of batteries in just 6.78 square feet of floor space.
-
Advanced 10” Touchscreen: A large, intuitive color display provides real-time analytics, status bars, and health checks for every individual module in the system.
-
Extreme Reliability: Features two separate and fully redundant high-speed communication buses to ensure the system remains coordinated even in the event of a control failure.
Technical Specifications
| Feature | Specification |
| Power Rating | 68 kW / 68 kVA (Unity Power Factor) |
| Phase | 3-Phase (Input & Output) |
| Topology | Online Double Conversion (VFI-SS-111) |
| Input Voltage | 208V / 220V (3-Phase + Neutral) |
| Efficiency | Up to 97% (Online Mode) |
| Dimensions (WxHxD) | 23.6″ x 78.5″ x 41.3″ (600 x 1995 x 1050 mm) |
| Weight | ~2,582 lbs (1,171 kg) (Fully populated with batteries) |
| Input THDi | < 3% (Generator Friendly) |
| Communication | NetMan 208, 10″ Touchscreen, 5 In / 4 Out Relays |
Modular: 2x34kW modules. 3 slots total. Other configs available on request.
