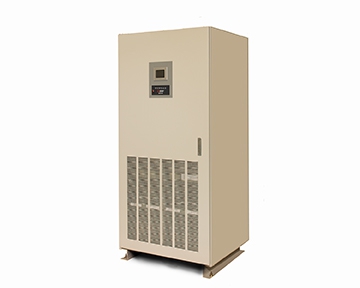

Product Description
Key Features & Benefits
-
High Efficiency: Delivers up to 96.5% efficiency in double-conversion mode across a wide load range (50%–100%) and up to 99% in optional Enviro-Mode (ECO mode).
-
4th Generation IGBT: Features advanced IGBTs in both the rectifier and inverter sections, resulting in low input harmonics (THDi < 3%) and ultra-quiet operation.
-
Compact Footprint: At only 27.6 inches wide, it offers one of the best power-to-space ratios in the 150kVA class, freeing up valuable floor space.
-
MMS (Multi-Module System): Supports paralleling of up to four (4) modules for either increased capacity or N+1 redundancy without a single point of failure in the control logic.
-
Generator Compatibility: Features a 1:1 generator sizing ratio thanks to its high input power factor (0.99) and low reflected current distortion.
-
Sustainability: A transformerless design reduces the weight and the amount of copper/iron used, contributing to a lower carbon footprint and reduced shipping costs.
Technical Specifications
| Feature | Specification |
| Power Rating | 150 kVA / 135 kW (0.9 Power Factor) |
| Phase | 3-Phase (Input & Output) |
| Topology | True Online, Double-Conversion |
| Input Voltage | 480V (3-Wire + Ground) |
| Output Voltage | 480V (3-Wire + Ground) |
| Dimensions (WxHxD) | 27.6″ x 80.6″ x 32.5″ (700 x 2047 x 825 mm) |
| Weight | ~860 lbs (391 kg) |
| Efficiency | Up to 96.5% (VFI) / 99% (Enviro-Mode) |
| Audible Noise | < 65 dBA @ 1 meter |
