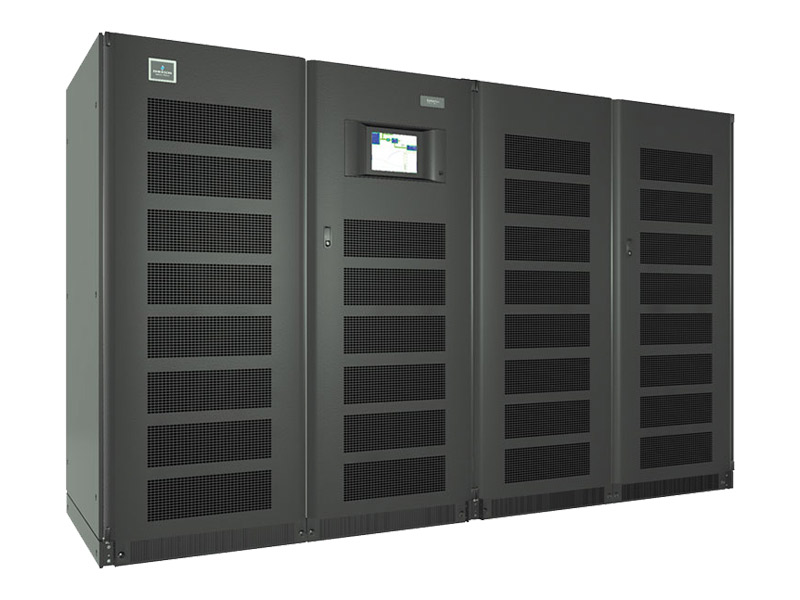

Product Description
Key Features & Benefits
-
Superior Load Handling: Designed to handle non-linear loads and high-crest factor currents without derating, making it ideal for large server clusters and industrial motors.
-
Intelligent Parallelism: Supports multi-module configurations (up to 6 units) for massive capacity or N+1 redundancy. Its peer-to-peer control ensures that no single module failure drops the critical load.
-
High Efficiency: Achieves up to 94% efficiency in double-conversion mode, providing substantial energy savings over legacy systems while maintaining total isolation.
-
Front-Only Serviceability: All routine maintenance and repairs can be performed through the front of the unit, allowing for back-to-wall or side-by-side installations to save floor space.
-
Color Touchscreen Interface: Features an intuitive, 10-inch color touchscreen for advanced diagnostics, real-time power flow visualization, and historical event logging.
-
Internal Backfeed Protection: Includes integrated backfeed protection for enhanced safety and compliance with global electrical standards.
Technical Specifications
| Feature | Specification |
| Power Rating | 500 kVA / 450 kW (0.9 Power Factor) |
| Phase | 3-Phase (Input & Output) |
| Topology | Double-Conversion Online |
| Standard Voltage | 480V (3-Wire + Ground) |
| Efficiency | Up to 94% (VFI Mode) |
| Dimensions (WxHxD) | 72.0″ x 77.8″ x 32.4″ (1829 x 1976 x 823 mm) |
| Weight | ~4,850 lbs (2,200 kg) |
| Audible Noise | ~72 dBA @ 1 meter |
