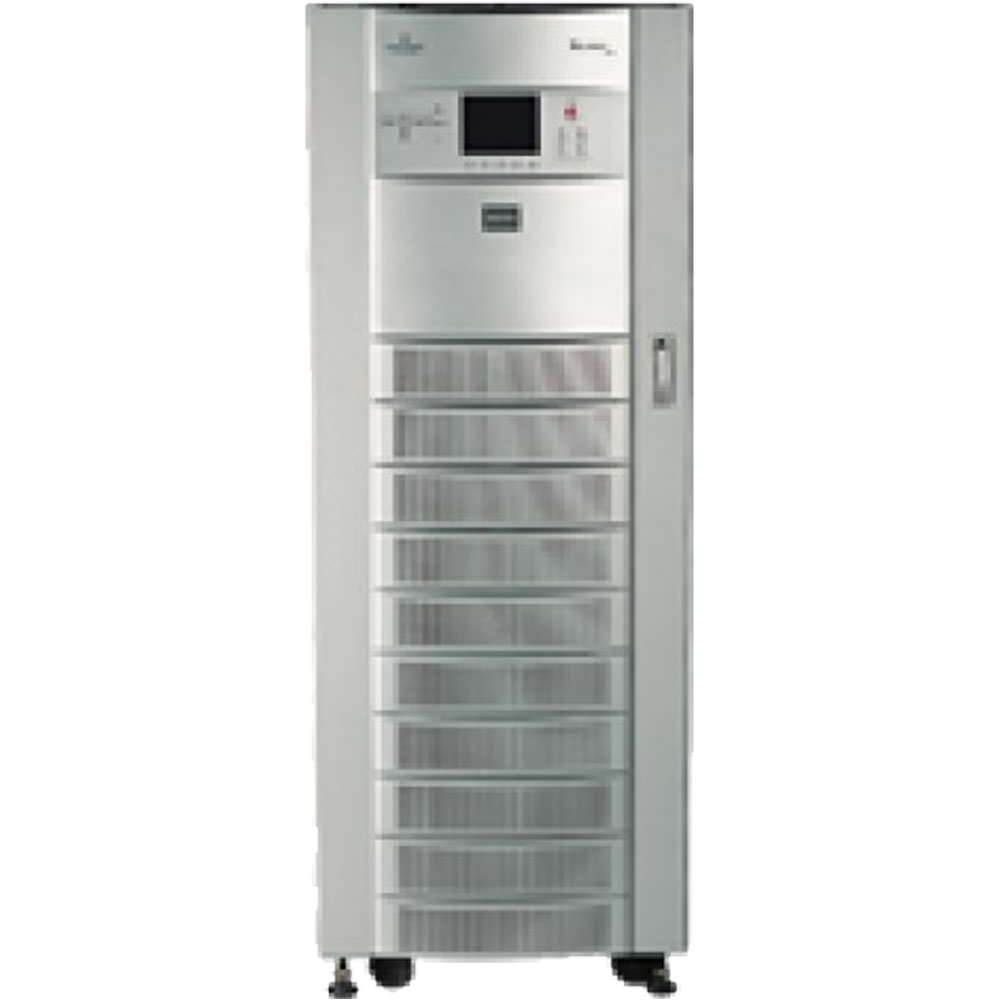

Product Description
Key Features & Benefits
-
True Online Double-Conversion: Constantly regenerates power to ensure a pure sine wave, protecting your equipment from 100% of utility power disturbances.
-
Ultra-Quiet Operation: At only 54 dBA, it is one of the quietest UPS systems in its class, making it suitable for installation near workstations or in clinical settings.
-
Internal Battery Strings: Provides a self-contained power solution with enough runtime for most “graceful shutdown” procedures, typically around 15–20 minutes at full load (depending on battery age).
-
IGBT-Based Rectifier: Ensures a high input power factor and low harmonic distortion (THDi < 4%), making it highly compatible with backup generators.
-
Softscale™ Technology: Allows for easy paralleling with other NX units for capacity or N+1 redundancy as your facility’s power needs grow.
-
Advanced Communications: Includes a user-friendly LCD display and an IntelliSlot™ for SNMP/Web management cards to monitor the system remotely.
Technical Specifications
| Feature | Specification |
| Power Rating | 15 kVA / 12 kW (0.8 Power Factor) |
| Phase | 3-Phase (Input & Output) |
| Topology | Double-Conversion Online |
| Nominal Voltage | 208/120V (Standard 3-Phase + Neutral + Gnd) |
| Dimensions (WxHxD) | 24.0″ x 63.0″ x 32.5″ (610 x 1600 x 826 mm) |
| Weight | ~450 lbs (Empty) / ~1,000 lbs (With Internal Batteries) |
| Efficiency | ~91% – 93% (Online Mode) |
| Audible Noise | < 54 dBA @ 1 meter |
