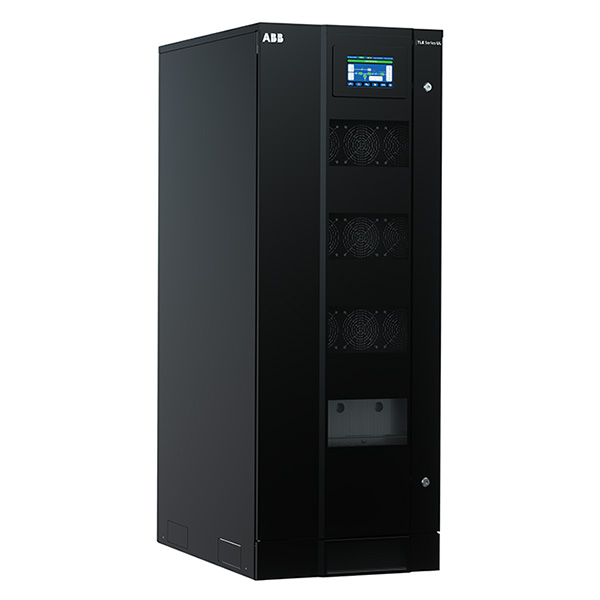

Product Description
Key Features & Benefits
-
Superior Efficiency: Achieving up to 96.5% efficiency in double-conversion mode and up to 99% in eBoost™ mode, the TLE Series minimizes energy losses and reduces cooling requirements.
-
High Reliability: Built with ABB’s Redundant Parallel Architecture (RPA™), the system eliminates single points of failure by allowing multiple units to share the load equally.
-
Compact Design: One of the smallest footprints in its class, allowing you to maximize floor space for revenue-generating equipment.
-
Superior Power Quality: Advanced output voltage regulation and low harmonic distortion (THDi < 3%) ensure that sensitive downstream equipment receives pure sine-wave power, regardless of grid fluctuations.
-
Intuitive Monitoring: Equipped with a large, user-friendly graphical display and comprehensive connectivity options for remote monitoring and diagnostics.
Technical Specifications
| Feature | Specification |
| Power Rating | 250 kVA / 250 kW (Unity Power Factor) |
| Topology | Double Conversion (Online) |
| Input Voltage | 480V (3Ph + Neutral + Ground) |
| Output Voltage | 480V (Adjustable) |
| Efficiency (VFI Mode) | Up to 96.5% |
| Efficiency (eBoost Mode) | Up to 99% |
| Audible Noise | < 68 dBA @ 1 meter |
| Operating Temp | 0°C to 40°C |
